Security Panels
Security PanelsPlate 01
Category · AS 2423-2002

Security Panels

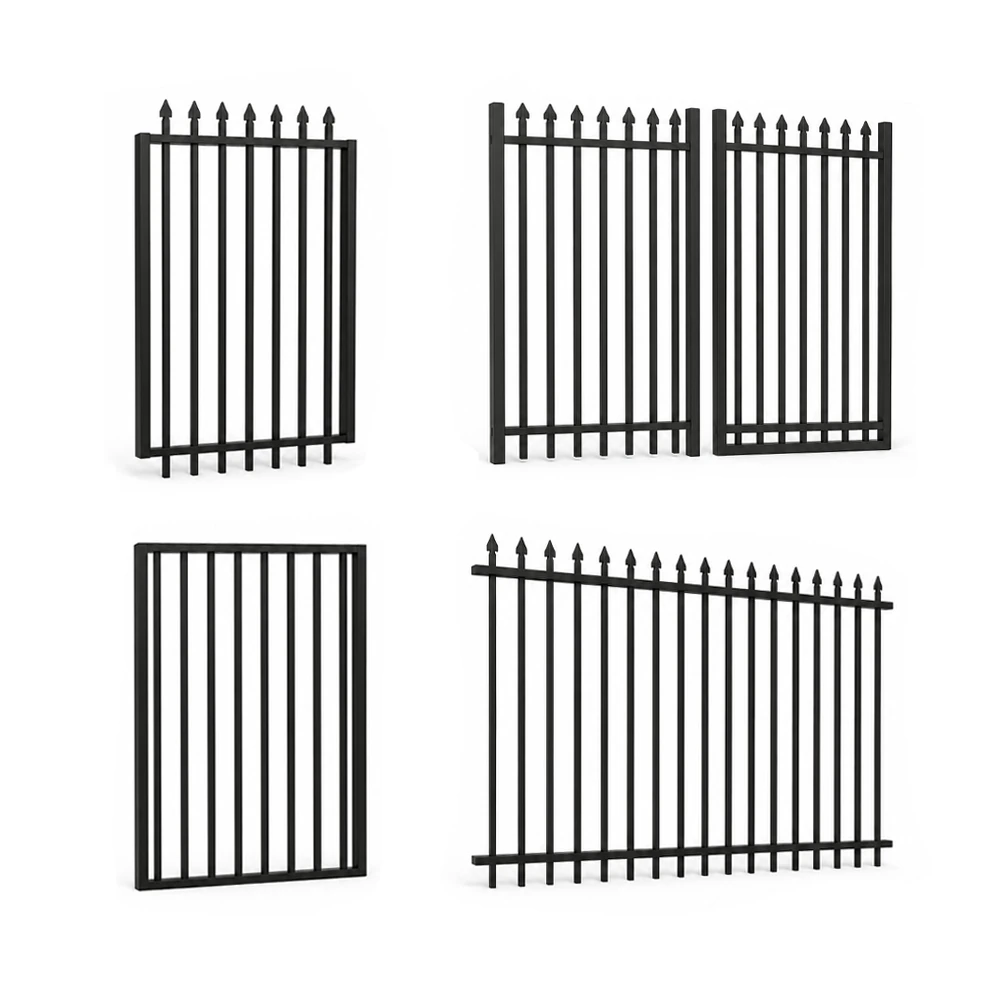

Heavy duty flat top and spear top security panels, gates, converter kits and custom fabricated options.

CallEmail
Finishes

3

Specs

35

Length

Various

Compliance

AS 2423

Overview

AS1450 galvanised C250 steel security panels and gates — flat top, H-frame and C-frame spear top designs, medium and heavy duty panels, gate converter kits, picket extensions and custom inhouse fabrication.

AS1450 galvanised C250 steel security panels and gates — flat top, H-frame and C-frame spear top designs, medium and heavy duty panels, gate converter kits, picket extensions and custom inhouse fabrication.

Compliant toAS 1450
  • Note · 01

    Silicon Bronze Weld ✓ AkzoNobel Treatment ✓ Zinc Primer ✓ Powder-Coated ✓

  • Note · 02

    *S = Single *D = Double | Stiles Suit Ball Bearing Knock In Gate Hinges & Broadhurst Locks ✓

  • Note · 03

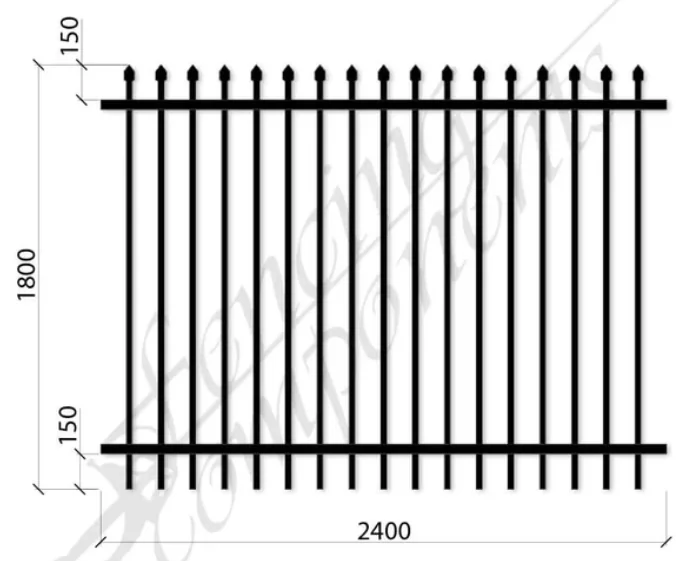

    Top rail 150mm from top of pickets | Bottom rail 150mm from bottom of pickets

  • Note · 04

    EX Brisbane Only | Stiles Suit ###### Hinges & SS Handle Locks ✓

  • Note · 05

    NSW Top rail 150mm from top of pickets | Bottom rail 150mm from bottom of pickets

  • Note · 06

    * QLD DETE Specification (Top rail position 250mm from top of pickets)

  • Note · 07

    AkzoNobel Treatment ✓ Zinc Primer ✓ Powder-Coated ✓

  • Note · 08

    Suit Standard 1.8m & 2.1m high Security Panels ✓

  • Note · 09

    4 x Bolt and Nut Pairs Included per Kit ✓

  • Note · 10

    Powder-Coated ✓

Finishes
BlackGalvanisedGreen
Find your product

Tell us what you need.

Pick your options and we'll match the exact product. Can't see it? The full range is in the catalogue, or just ask us.

Filter
29 found

HEAVY DUTY FLAT TOP GATES AS1450 GALVANISED C250 STEEL | DET NSW SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
1.5
Width
1.2
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY FLAT TOP GATES AS1450 GALVANISED C250 STEEL | DET NSW SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
1.8
Width
1.2
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY FLAT TOP GATES AS1450 GALVANISED C250 STEEL | DET NSW SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
2.1
Width
1.2
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY FLAT TOP PANELS AS1450 GALVANISED C250 STEEL | DET NSW SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
1.5
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY FLAT TOP PANELS AS1450 GALVANISED C250 STEEL | DET NSW SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
1.8
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY FLAT TOP PANELS AS1450 GALVANISED C250 STEEL | DET NSW SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
2.1
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

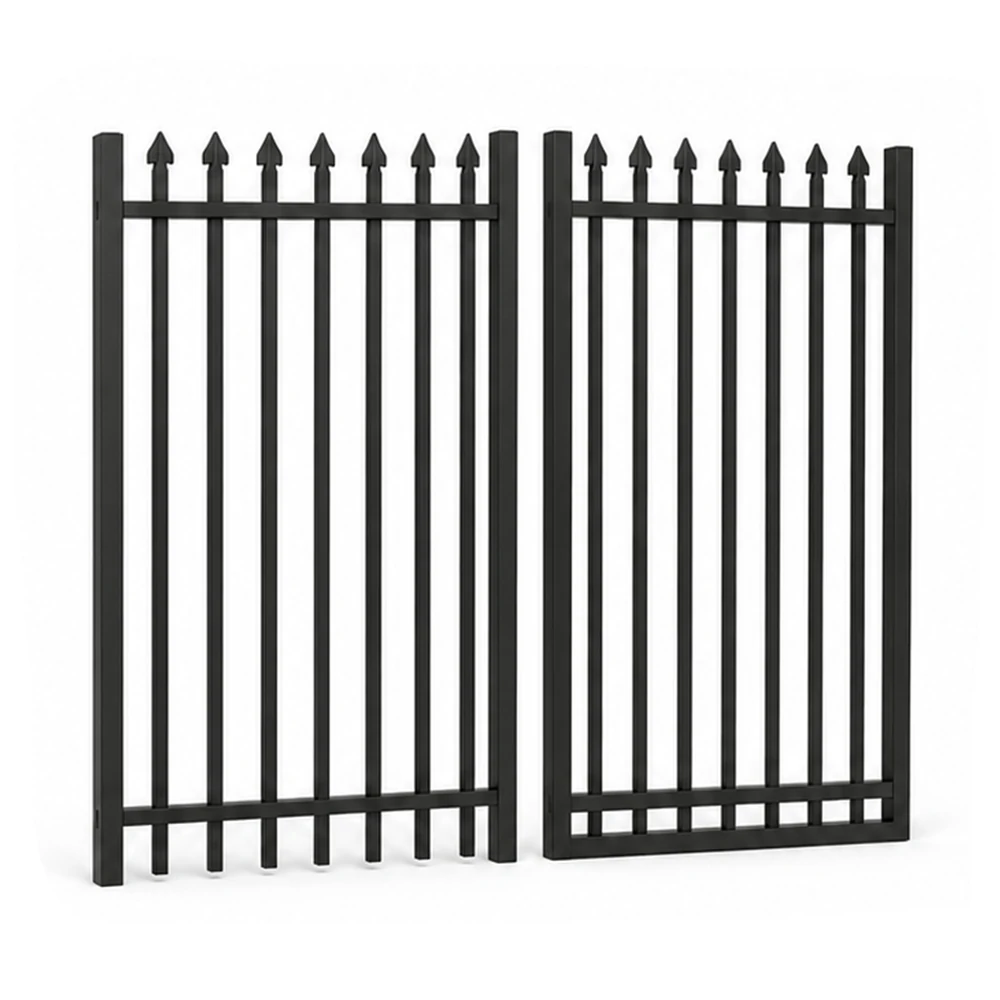

HEAVY DUTY H-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
1.8
Width
1
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY H-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.1
Width
1
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY H-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.1
Width
1.2
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY H-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.1
Width
2*S / 4*D
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY H-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.1
Width
2*S / 4*D
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY C-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
1.8
Width
1
Square Frame (mm) Size
50 x 50
Thickness (mm)
2
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY C-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.1
Width
1
Square Frame (mm) Size
50 x 50
Thickness (mm)
2
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY C-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.1
Width
1.2
Square Frame (mm) Size
50 x 50
Thickness (mm)
2
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY C-FRAME SPEARTOP GATES AS1450 GALVANISED C250 STEEL PC BLACK

Dimensions (m) Height
2.4
Width
1
Square Frame (mm) Size
50 x 50
Thickness (mm)
2
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEARTOP PANELS AS1450 GALVANISED C250 STEEL | DET/DETE SCHOOL COMPLIANT GAL

Dimensions (m) Height
2.1
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
115
Gap
90
Thickness (2) (mm)
1.2
Finish
GAL
CallEmail

HEAVY DUTY SPEARTOP PANELS AS1450 GALVANISED C250 STEEL | DET/DETE SCHOOL COMPLIANT PC BLACK

Dimensions (m) Height
* 2.1
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
125
Gap
100
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

MEDIUM DUTY SPEARTOP PANELS AS1450 GALVANISED STEEL PC BLACK

Dimensions (m) Height
1.8
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.2
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
0.9
Finish
PC BLACK
CallEmail

MEDIUM DUTY SPEARTOP PANELS AS1450 GALVANISED STEEL PC BLACK

Dimensions (m) Height
2.1
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.2
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
0.9
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEARTOP PANELS AS1450 GALVANISED STEEL PC BLACK

Dimensions (m) Height
1.8
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEARTOP PANELS AS1450 GALVANISED STEEL PC BLACK

Dimensions (m) Height
2.1
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEARTOP PANELS AS1450 GALVANISED STEEL PC BLACK

Dimensions (m) Height
2.4
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEARTOP PANELS ALUMINIUM Special Order PC BLACK

Dimensions (m) Height
1.8
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEARTOP PANELS ALUMINIUM Special Order PC BLACK

Dimensions (m) Height
2.1
Width
2.4
Square Frame (mm) Size
40 x 40
Thickness (mm)
1.6
25mm Square Pickets (mm) Centres
140
Gap
115
Thickness (2) (mm)
1.2
Finish
PC BLACK
CallEmail

HEAVY DUTY GATE CONVERTER KITS AS1450 GALVANISED STEEL PC BLACK

Height (m) Gate Stile
1.8
Panel
1.8
Square Frame (mm) Size
50 x 50
Thickness (mm)
2
Gate Type
H-Frame
Typical Location
NSW
Finish
PC BLACK
CallEmail

HEAVY DUTY GATE CONVERTER KITS AS1450 GALVANISED STEEL PC BLACK

Height (m) Gate Stile
2.1
Panel
2.1
Square Frame (mm) Size
50 x 50
Thickness (mm)
2
Gate Type
H-Frame
Typical Location
NSW
Finish
PC BLACK
CallEmail

HEAVY DUTY GATE CONVERTER KITS AS1450 GALVANISED STEEL PC BLACK

Height (m) Gate Stile
1.5
Panel
1.8
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
Gate Type
C-Frame
Typical Location
QLD
Finish
PC BLACK
CallEmail

HEAVY DUTY GATE CONVERTER KITS AS1450 GALVANISED STEEL PC BLACK

Height (m) Gate Stile
1.8
Panel
2.1
Square Frame (mm) Size
65 x 65
Thickness (mm)
2
Gate Type
C-Frame
Typical Location
QLD
Finish
PC BLACK
CallEmail

HEAVY DUTY SPEAR PICKET EXTENSION AS1450 GALVANISED STEEL PC BLACK

Height (mm) Extension
300
Insert
75
Square Frame (mm) Size
25 x 25
Thickness (mm)
2
Finish
PC BLACK
CallEmail
Also available

CUSTOM INHOUSE FABRICATED SECURITY GATES & PANELS AVAILABLE

Flat top, spear top and raked designs, drafted, approved, then built in-house.

How custom works
  • Professionally Drafted
  • Manufactured to your Approval
  • Single or Bolt Together Sliding Gates
  • Single or Double Swing Gates
  • Frame Options 40x40
  • 50x50
  • 65x65
  • 75x75
  • 125x75
  • 100x100
  • 150x100
  • Up to 2.4m High
  • Up to 15.0m Wide
  • Flat Top
  • Spear Top
  • Raked
  • Galvanised
  • Hotdipped
  • Powdercoated
